Features

• Circularly Polarized
• Sector type beam shape (widest on horizontal)
• Mount direct on DJI faceplate with included adhesive backing
• Compact low-profile design on your goggles, easy to store and transport
• High 13 dBic for unsurpassed long range and signal penetration
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Super wide 150 degree beam for each antenna combining to 180deg beam width
• Custom knurled RP-SMA connectors
• Highly compact included stubby antennas for combined directional and omnidirectional coverage

Specs (X²-air)

• Bandwidth: 5.1GHz-7.0GHz
• Gain: 13 dBic
• Polarization: LHCP
• Beam-width Horizontal*: 150deg
• Beam-width Vertical*: 62deg
• Hor. beam @-3dB**: 75deg.
• Vert. beam @-3dB**: 34deg.
• Connector: MCX
• Dimension: 72mm x 34mm x 15mm
• Weight: 20g each

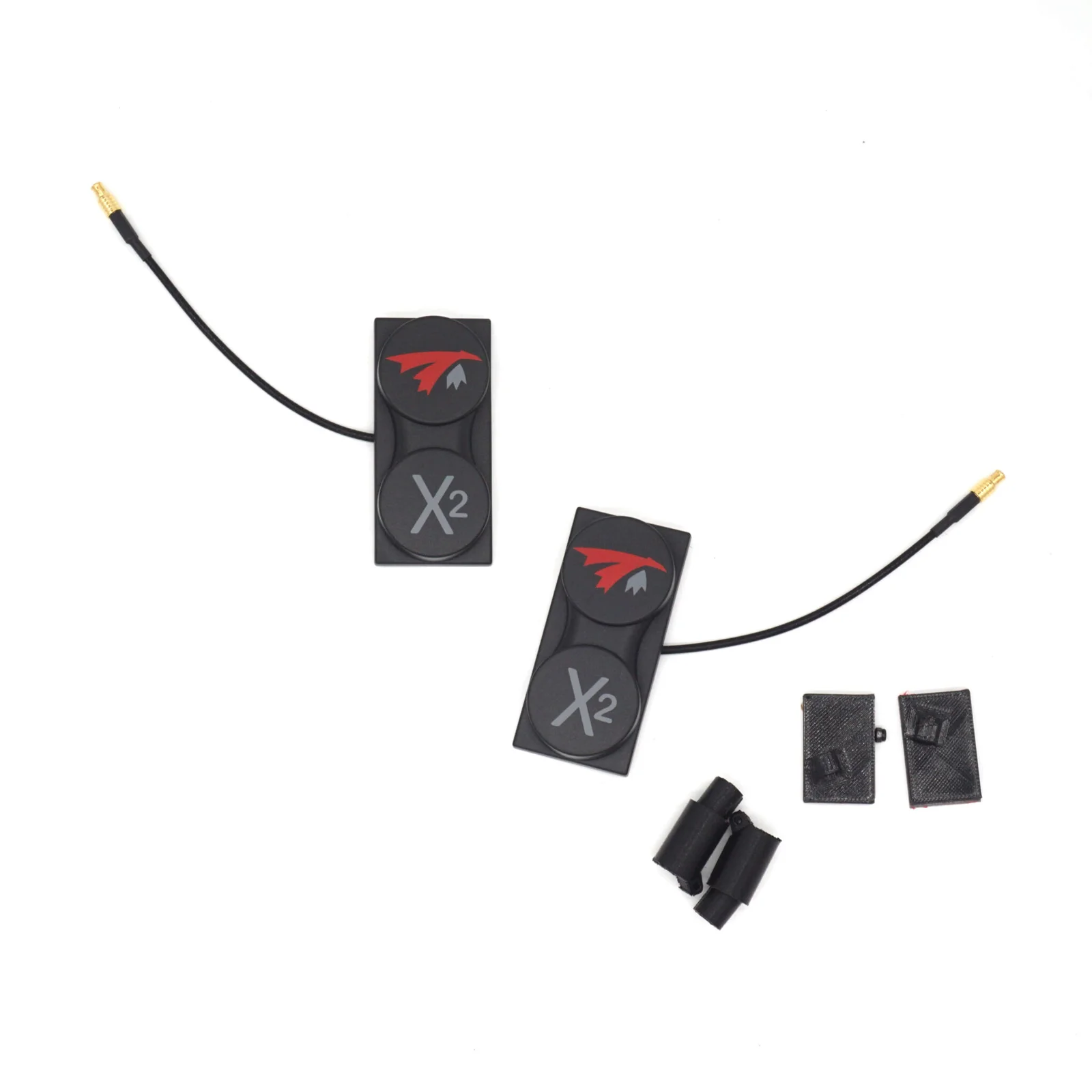

• Include adhesive mount for installation onto DJI FPV goggles.

*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.
