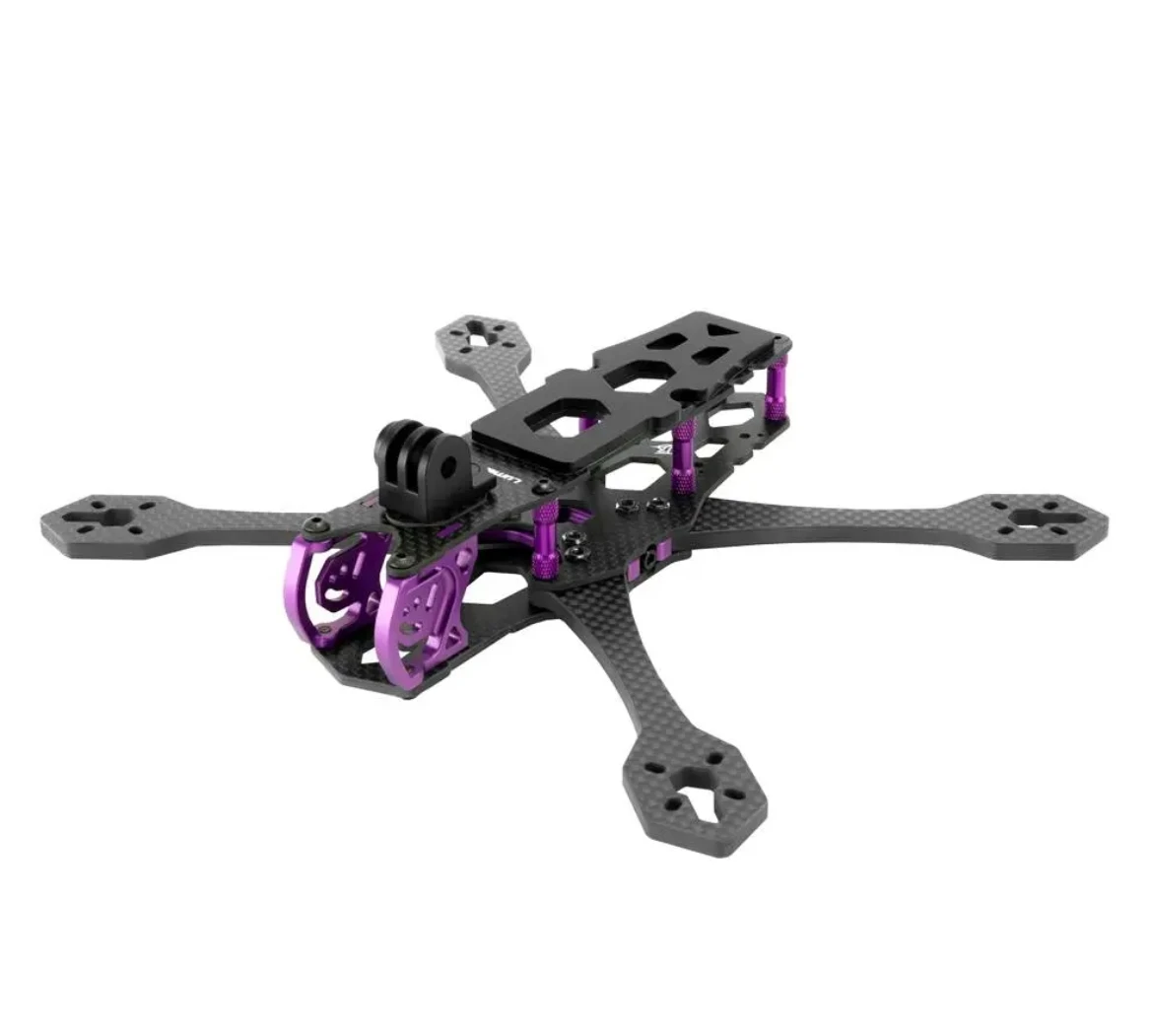

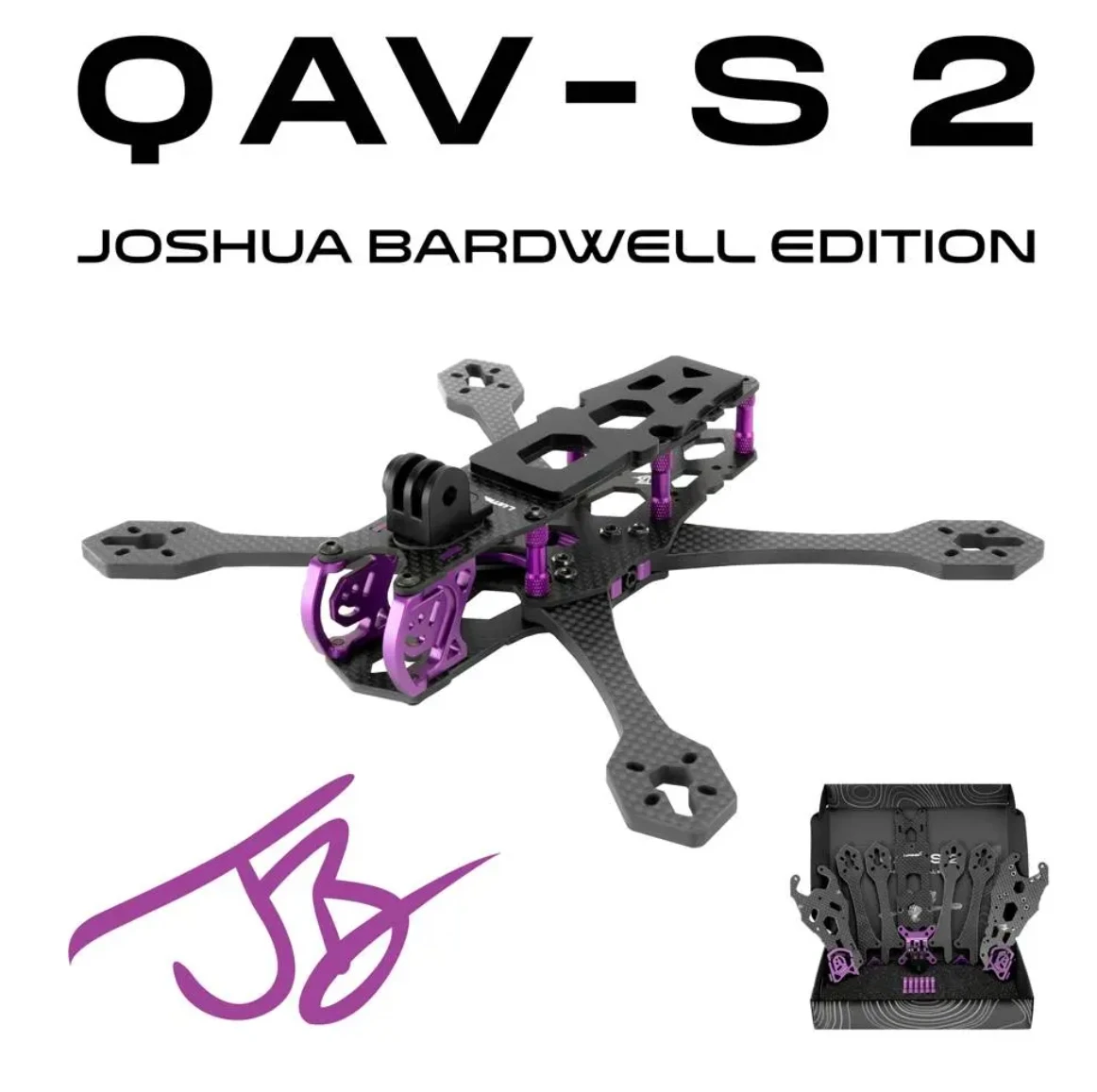

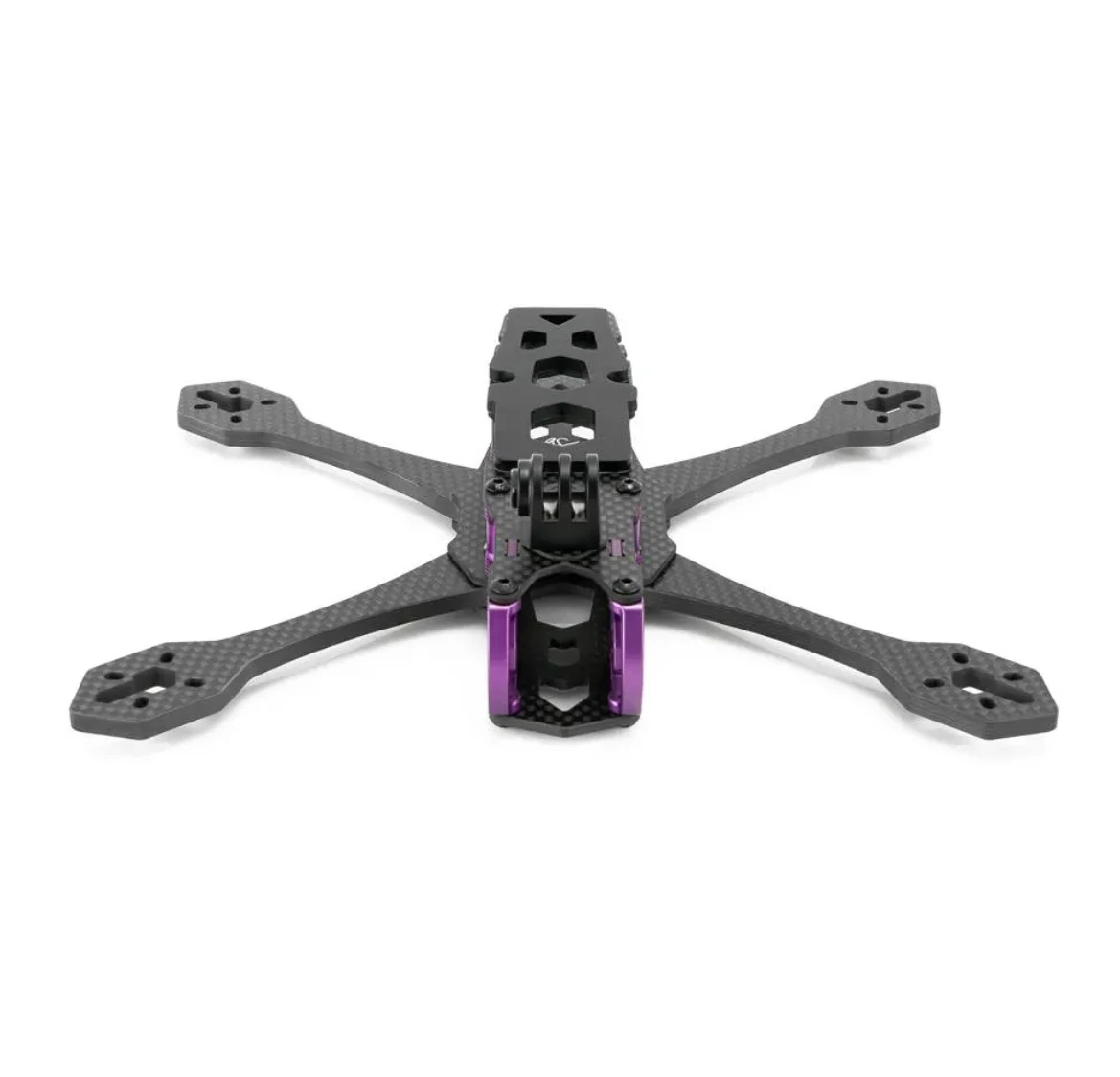

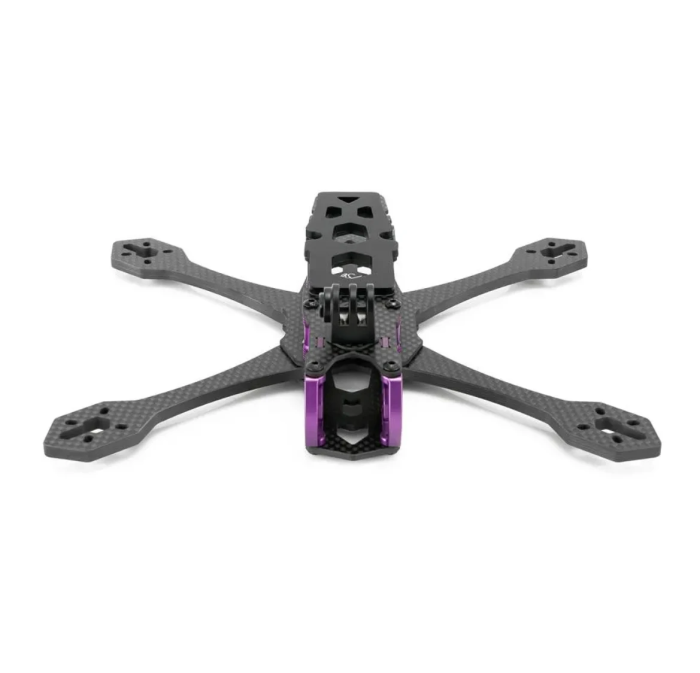

Introducing the Lumenier QAV-S 2 5″ Freestyle Quadcopter Frame – Joshua Bardwell Special Edition, a custom-designed drone frame for FPV Freestyle flying!

This Lumenier frame was designed in collaboration with world-renown FPV guru Joshua Bardwell to bring you the “perfect” FPV freestyle frame. Building upon the success of the QAV-S series, the QAV-S 2 takes it a step further with an optimized design to save weight, X-Lock arm retention for added strength and rigidity, an aluminum FPV camera mount, injection molded GoPro mount, O3 compatibility, and much more!

Note: This frame fits the O3, Vista, Walksnail, or Analog units in rear-mounting orientation. HDZero Freestyle fits in a center-mounted orientation with a rear-mounted FC or ESC.

Features
Made in Collaboration with FPV expert Joshua Bardwell
Frame made of High-Quality Lumenier components
Backward-compatible mounting patterns
Aluminum FPV Camera Side Plates
Injection-Molded GoPro Mount
O3 Compatible Mounts

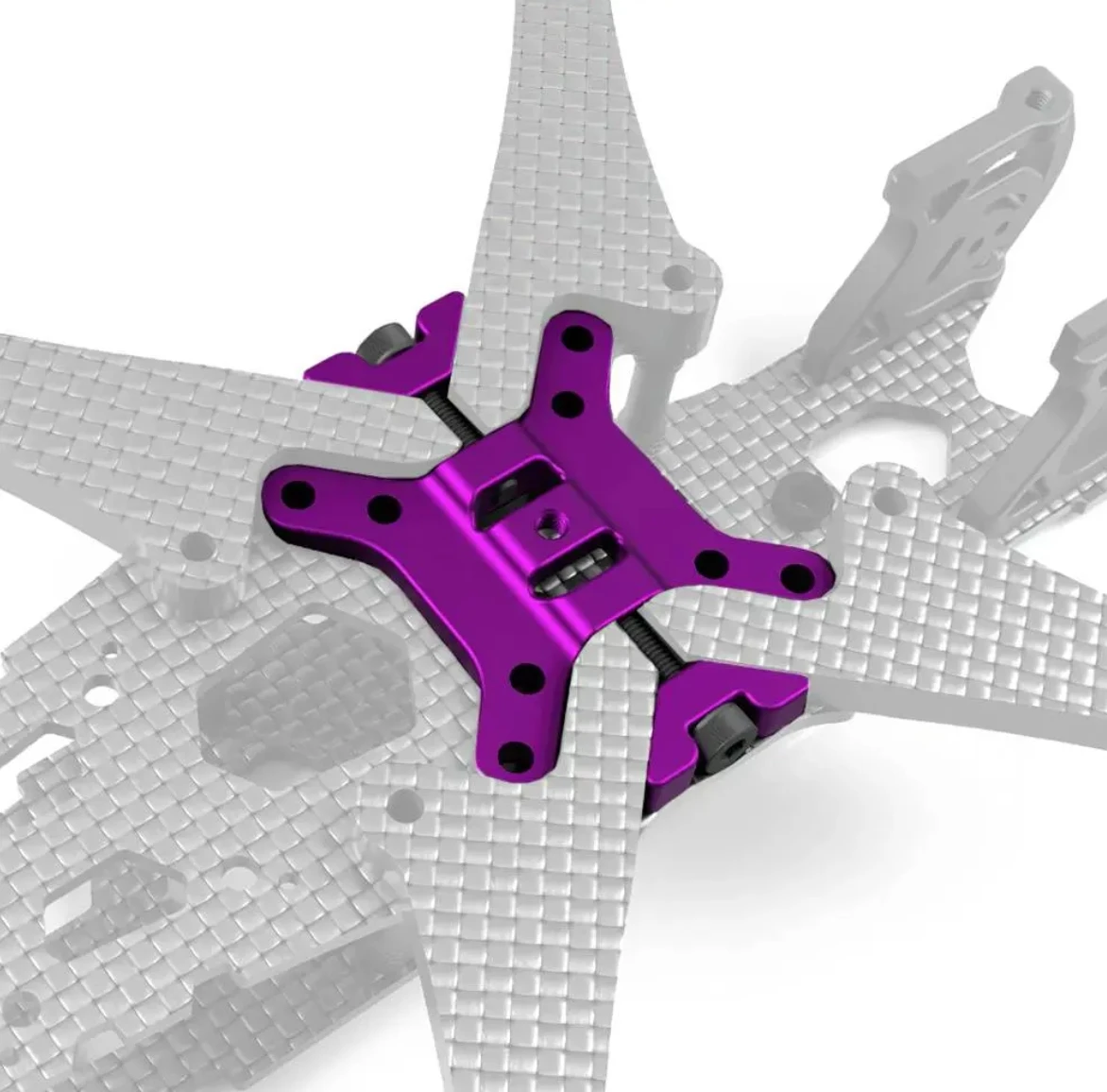

X-Lock Mechanism

Specifications
Weight: 124g (without HD camera mount, 130g with)

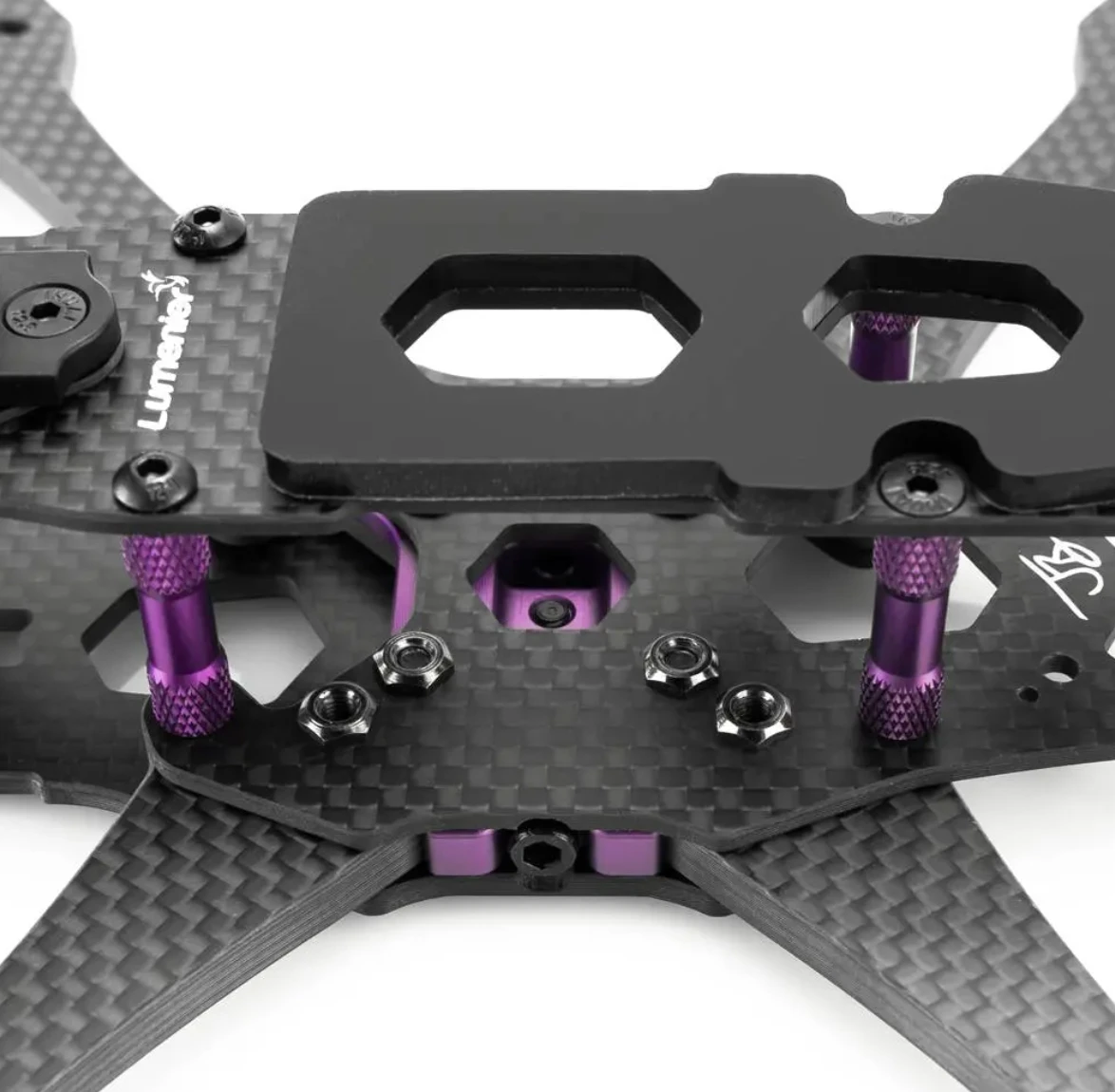

Standoffs: 7075 Aluminum (Purple)
Arm: 5mm 3K Carbon Fiber
Screws: Steel 12.9 grade
X-Plate: Aluminum
Frame Size: 220mm

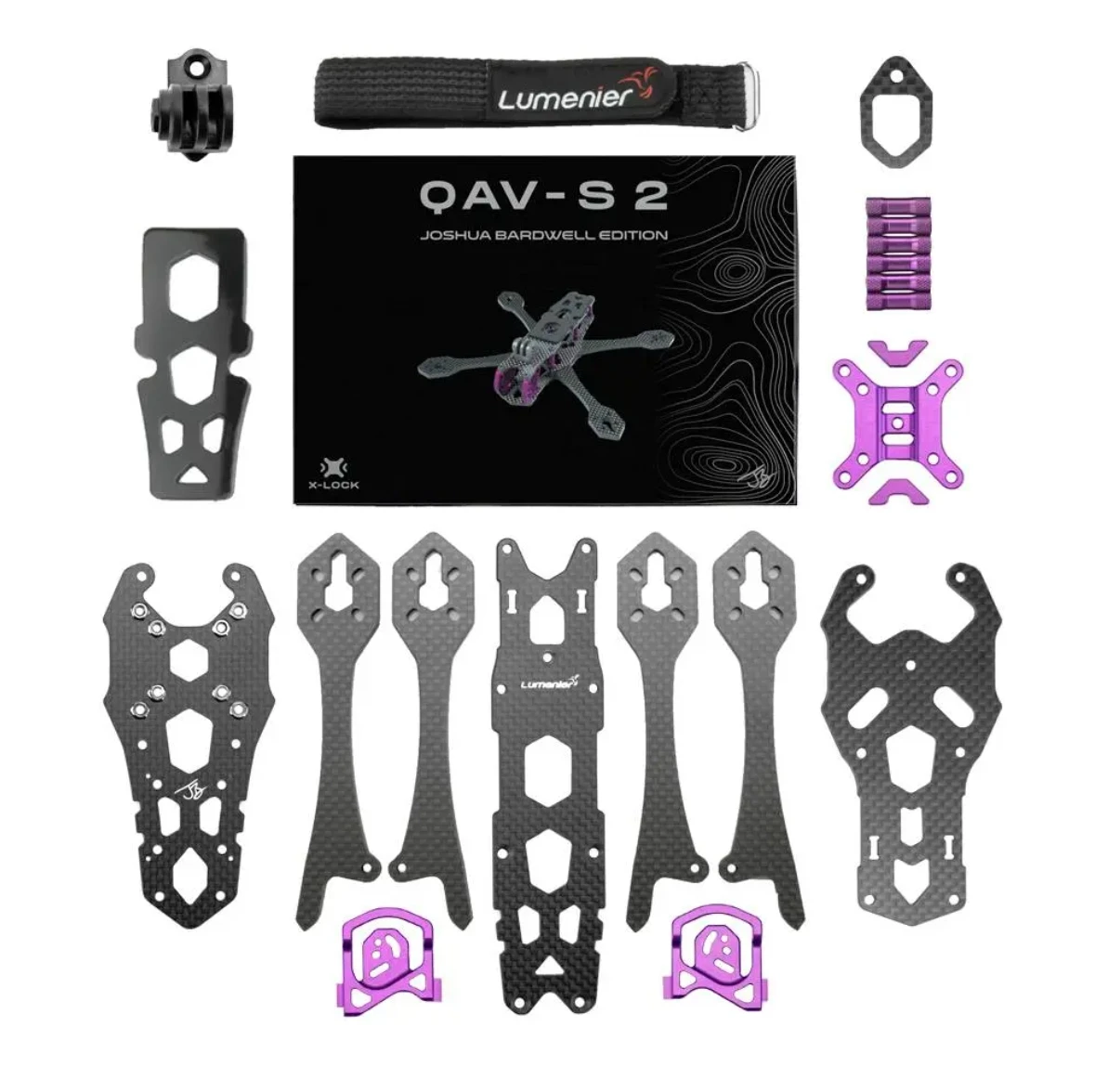

Includes
Lumenier QAV-S 2 Joshua Bardwell SE 5” Frame Kit
1x Bardwell QAV-S 2 Pro Mount Spacer Plate 1mm
2x Bardwell QAV-S 2 Aluminum Arm Wedge 5mm
1x Bardwell QAV-S 2 Aluminum FC Isolator 5mm
1x Bardwell QAV-S 2 Split Plate Front 2.5mm
1x Bardwell QAV-S 2 Split Plate Rear 2mm
4x Bardwell QAV-S 2 5 Inch Arm 5mm
1x Lumenier Battery Strap 16x220mm
1x Bardwell QAV-S 2 Top Plate 2mm
1x Bardwell QAV-S 2 Battery Pad
1x FPV Camera Mount Right
1x FPV Camera Mount Left
6x Knurled Standoff
1x GoPro Mount
1x Hardware Set
